NVIDIA vs AMD GPU Servers: How to Choose the Right Platform for Your Workload

50

0

Read 33 min.

When it comes to GPU servers, NVIDIA and AMD are the two leading vendors. Both offer powerful solutions for compute-intensive workloads, including artificial intelligence (AI), machine learning, scientific computing, and high-performance computing (HPC).

Although GPU servers are designed to accelerate parallel computing, AMD and NVIDIA platforms differ significantly in several areas, including GPU architecture, memory capacity, software ecosystem, scalability, performance, and cost. These differences directly affect which platform is better suited to a particular workload.

As an enterprise-grade infrastructure provider, INTROSERV offers customizable dedicated GPU servers for compute-intensive and high-performance workloads such as artificial intelligence, machine learning, rendering, scientific computing, and HPC.

In this article, we compare NVIDIA and AMD GPU servers, examine the strengths and limitations of each platform, and explain which use cases they are best suited for. The goal is not to determine a universal winner but to show why the right choice depends on the specific workload and infrastructure requirements.

Quick answer: choose NVIDIA when you need a mature CUDA ecosystem, broad compatibility, and easy deployment. Consider AMD when GPU memory capacity and total cost are the main constraints, and your software stack can be validated on ROCm in advance.

How Your Workload Determines the Right GPU Server

Different types of workloads depend on different GPU characteristics. Some require more VRAM, while others rely more heavily on memory bandwidth or the number of Tensor Cores:

• Chat applications: low latency and high memory bandwidth;
• Document processing: enough VRAM for long context and large batches;
• Search and information retrieval: throughput and memory capacity for embeddings and indexes;
• Reasoning and inference tasks: memory bandwidth and VRAM for long outputs.

The same principle applies to workloads beyond artificial intelligence. A GPU server that performs well for model training or inference may not always be the best choice for 3D rendering, video processing, scientific computing, and other compute-intensive GPU workloads.

Both NVIDIA and AMD offer powerful GPU solutions, but when choosing a server, it is important to consider more than just overall performance. Other key factors include:

• Compatibility with software and frameworks;
• GPU memory capacity and specifications;
• Scalability in multi-GPU configurations;
• Efficiency for a specific type of workload;
• Infrastructure and deployment requirements;
• Total solution cost and price-to-performance ratio.

NVIDIA is often the preferred choice for artificial intelligence and machine learning workloads thanks to its mature software ecosystem, broad support for popular frameworks, and strong compatibility with AI applications.

One of the company’s key advantages is CUDA, NVIDIA’s proprietary software platform, which is deeply integrated into many AI frameworks, libraries, and development tools.

High-performance GPUs such as the NVIDIA H100 and B200 are designed for large-scale AI workloads, including model training and other compute-intensive tasks.

Additional advantages of NVIDIA include mature drivers, extensive documentation, and a well-developed software stack, which generally make deployment and ongoing operation easier.

AMD has an advantage in workloads where GPU memory capacity is the main bottleneck. Instinct accelerators offer more HBM memory per card than many comparable solutions, allowing larger models and datasets to fit into the memory of a single GPU without being distributed across multiple cards. This can simplify and reduce the cost of inference for already trained models, since the same model may require fewer GPUs, lowering the cost per request. The MI300X is a good example of this approach, but the same principle applies across the broader Instinct lineup.

The main limiting factor for AMD is typically the software ecosystem. The ROCm platform is developing rapidly, but in some cases its setup and compatibility validation may require more time and engineering resources compared with the more mature CUDA environment.

For this reason, the choice between NVIDIA and AMD should not be based on brand alone. NVIDIA has an advantage when a mature software ecosystem, broad compatibility, and large-scale model training are the main priorities. AMD can be more attractive when GPU memory capacity and total solution cost are the key constraints.

There is no universally best GPU platform. The optimal choice depends on the specific workload, whether it is AI model training, inference, document processing, search and information retrieval, reasoning tasks, or rendering complex scenes.

Next, we examine these scenarios in more detail and explain which GPU server characteristics matter most for each type of workload. This will help clarify where NVIDIA has an advantage, where AMD may provide better value, and why choosing a GPU server should always begin with an analysis of the specific task.

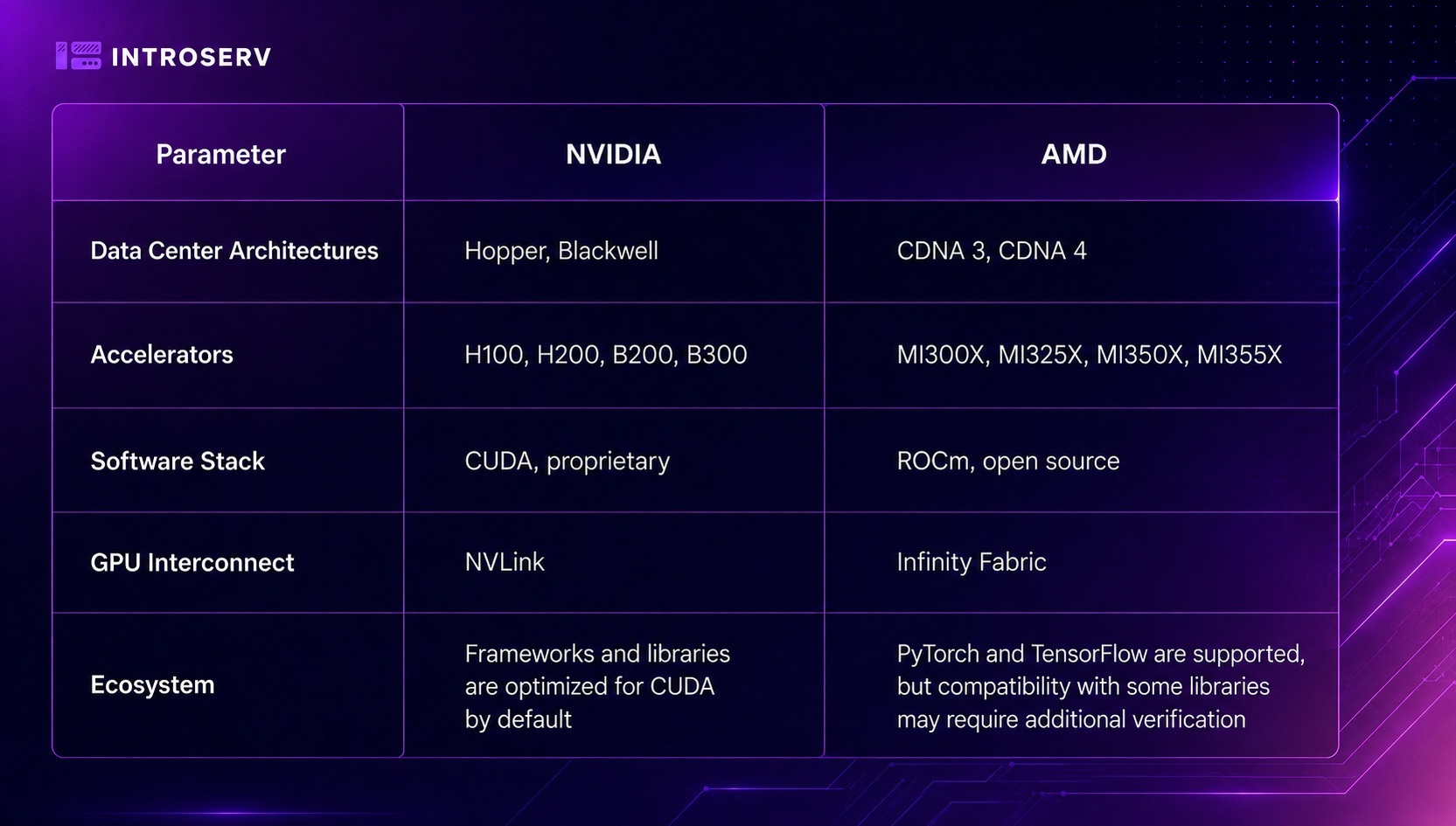

Key Differences Between NVIDIA and AMD GPU Servers

NVIDIA and AMD offer powerful GPU platforms for artificial intelligence, machine learning, scientific computing, and HPC. However, there are noticeable differences between them in architecture, software support, performance, cost, and integration with cloud infrastructure.

GPU Architecture: Hopper, Blackwell, and CDNA

NVIDIA does not split its architectures into separate graphics and compute lines: a single generation covers both segments. Blackwell underpins both the data center accelerators B200 and B300 and the professional RTX PRO 6000 cards. What sets them apart is the design of the accelerator itself: memory type, support for low-precision computing, and the presence of the NVLink interconnect. NVIDIA also has a purely data center branch: Hopper, which powers the H100 and H200.

AMD mainly uses the RDNA and CDNA architectures. RDNA is oriented primarily toward graphics workloads, whereas CDNA is designed specifically for data centers, AI, and HPC. AMD Instinct accelerators compete directly with NVIDIA’s server GPUs and are built for demanding compute-intensive tasks.

Important note: AMD and NVIDIA use different architectural approaches. NVIDIA places greater emphasis on compute efficiency and mixed-precision workloads, while AMD focuses more heavily on large memory capacity and parallel data processing.

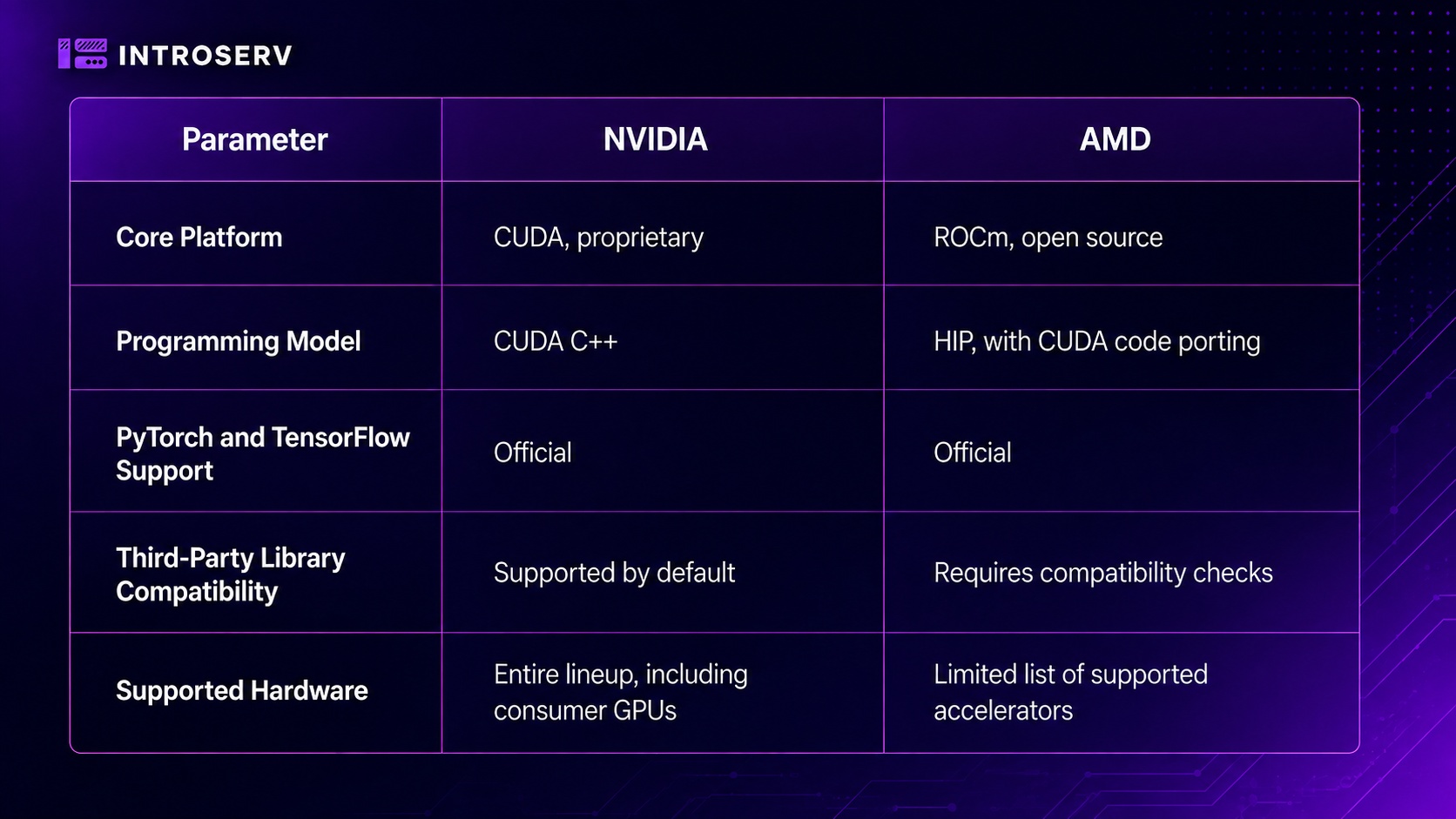

Software Ecosystem: CUDA vs ROCm

CUDA is NVIDIA’s proprietary platform, while ROCm is AMD’s open-source platform. In practice, however, the key difference is not the licensing model, but how much additional work may be required before a project can be deployed.

PyTorch and TensorFlow officially support both platforms. However, much of the code and many libraries in the machine learning ecosystem are developed with CUDA as the default target, so a typical project is more likely to run on NVIDIA without modifications. ROCm provides the HIP programming model, which makes it possible to port CUDA code, but migration still requires checking the compatibility of specific libraries and framework versions.

Another practical difference is the breadth of hardware and system support. CUDA works across the NVIDIA GPU lineup, including consumer GPUs. ROCm officially supports a more limited range of accelerators and Linux distributions, so the compatibility list should be checked carefully before selecting hardware.

An interesting point: AMD takes a more open approach, while NVIDIA’s CUDA ecosystem is proprietary. Nevertheless, NVIDIA continues to hold a strong position among developers, not only because of its hardware, but also thanks to many years of investment in and development of its software ecosystem.

Performance and Memory: H200 vs MI300X

Both platforms accelerate matrix computations using dedicated hardware blocks: NVIDIA uses Tensor Cores, while AMD uses CDNA Matrix Cores. The presence of this type of acceleration is no longer a meaningful differentiator by itself, so the comparison should focus on specific performance metrics.

The main difference is memory. The H200 SXM comes with 141 GB of HBM3e memory and 4.8 TB/s of memory bandwidth, while the MI300X offers 192 GB of HBM3 and 5.3 TB/s. That additional 51 GB can determine whether a model fits on a single accelerator or needs to be split across multiple GPUs.

The second difference lies in performance across different compute types. In double precision, the MI300X is rated at 81.7 TFLOPS, while the H200 SXM delivers 34 TFLOPS in standard FP64 mode and 67 TFLOPS using Tensor Cores, meaning AMD’s advantage depends on which mode is being compared. At lower precision, the gap is narrower: 5.2 PFLOPS versus 3,958 TFLOPS in FP8, with both figures accounting for sparsity.

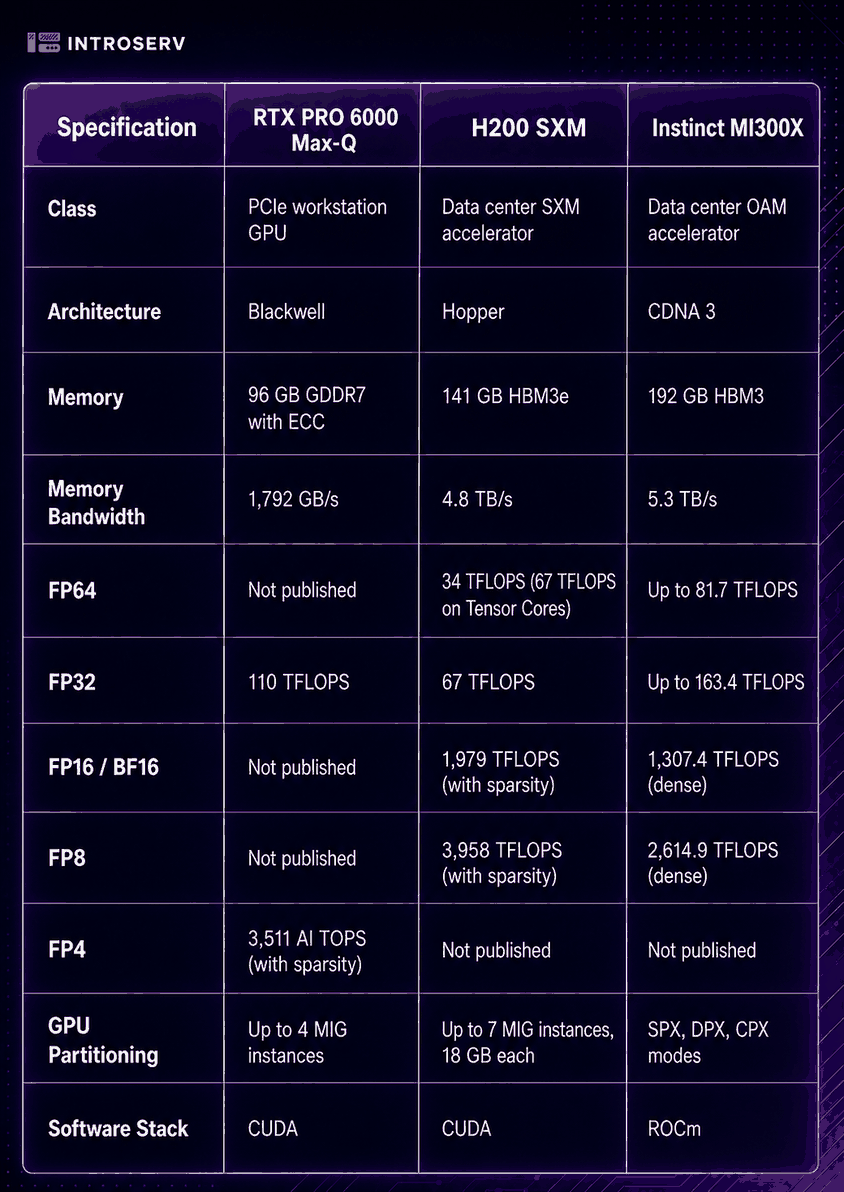

Keep in mind that the table below lists the MI300X FP16/BF16 and FP8 figures in dense mode and the H200 SXM figures with sparsity, so compare like with like before drawing conclusions.

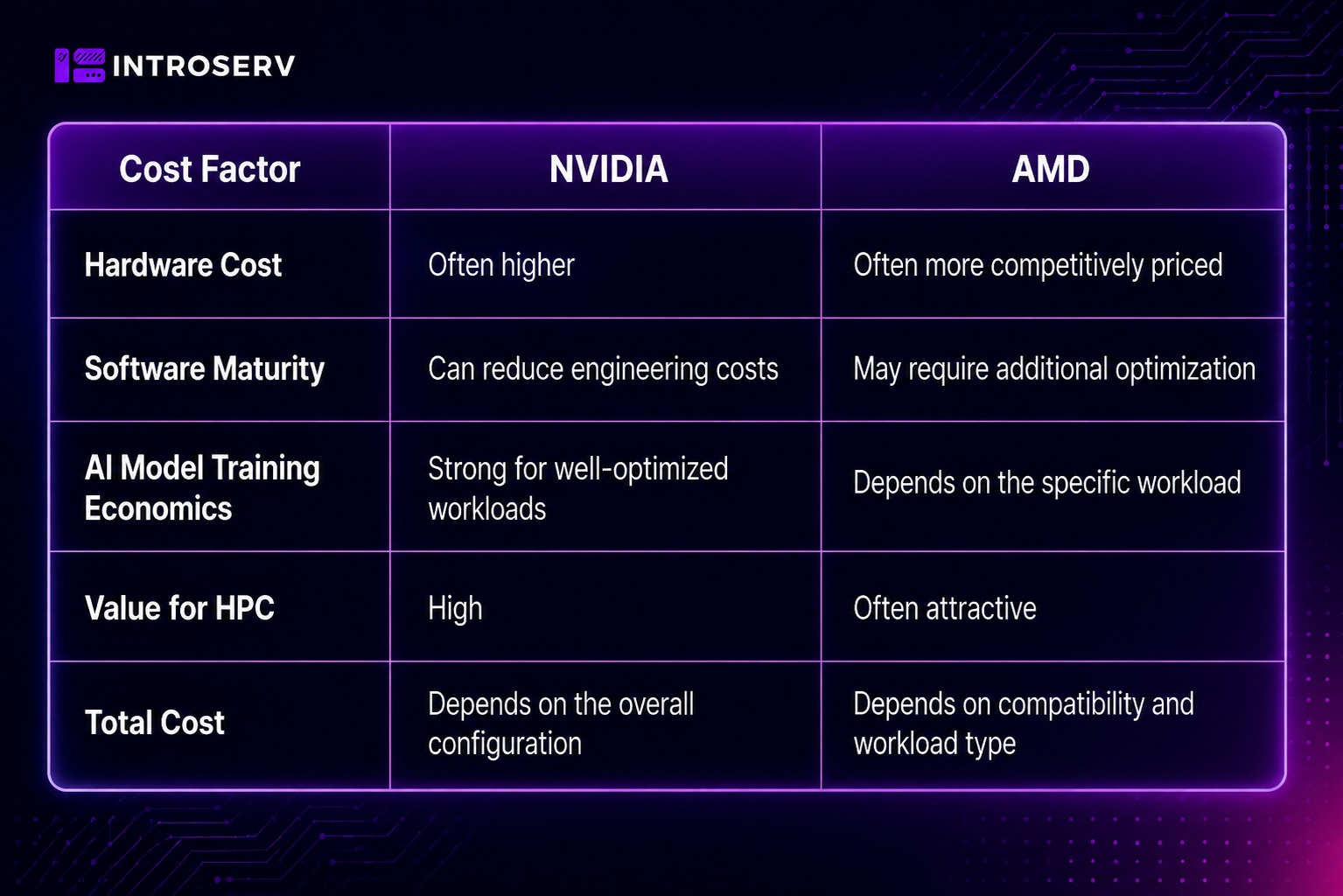

Total Cost of Ownership of a GPU Server

Neither NVIDIA nor AMD publishes list prices for data center accelerators. These products are typically supplied through partners, and the final cost depends on the configuration of the entire system. For this reason, it makes more sense to compare the factors that shape total cost over the full lifecycle rather than the price of the GPU alone.

The first factor is the number of GPUs required for a workload. Memory capacity determines how many accelerators are needed to fit a model: 96 GB on the RTX PRO 6000 Max-Q, 141 GB on the H200, and 192 GB on the MI300X. Fewer GPUs can mean fewer servers, fewer network ports, and lower costs for supporting infrastructure and software licenses.

The second factor is power consumption, which directly affects colocation and operating costs: 300 W for the RTX PRO 6000 Max-Q, up to 700 W for the H200, and 750 W for the MI300X. Over several years of operation, the difference between 300 W and 750 W per GPU can become significant compared with the initial hardware cost.

The third factor is engineering time. If a project is already built around CUDA, migrating it to ROCm may require additional validation of libraries and framework versions. This work is paid for in engineering hours rather than appearing directly on the hardware invoice.

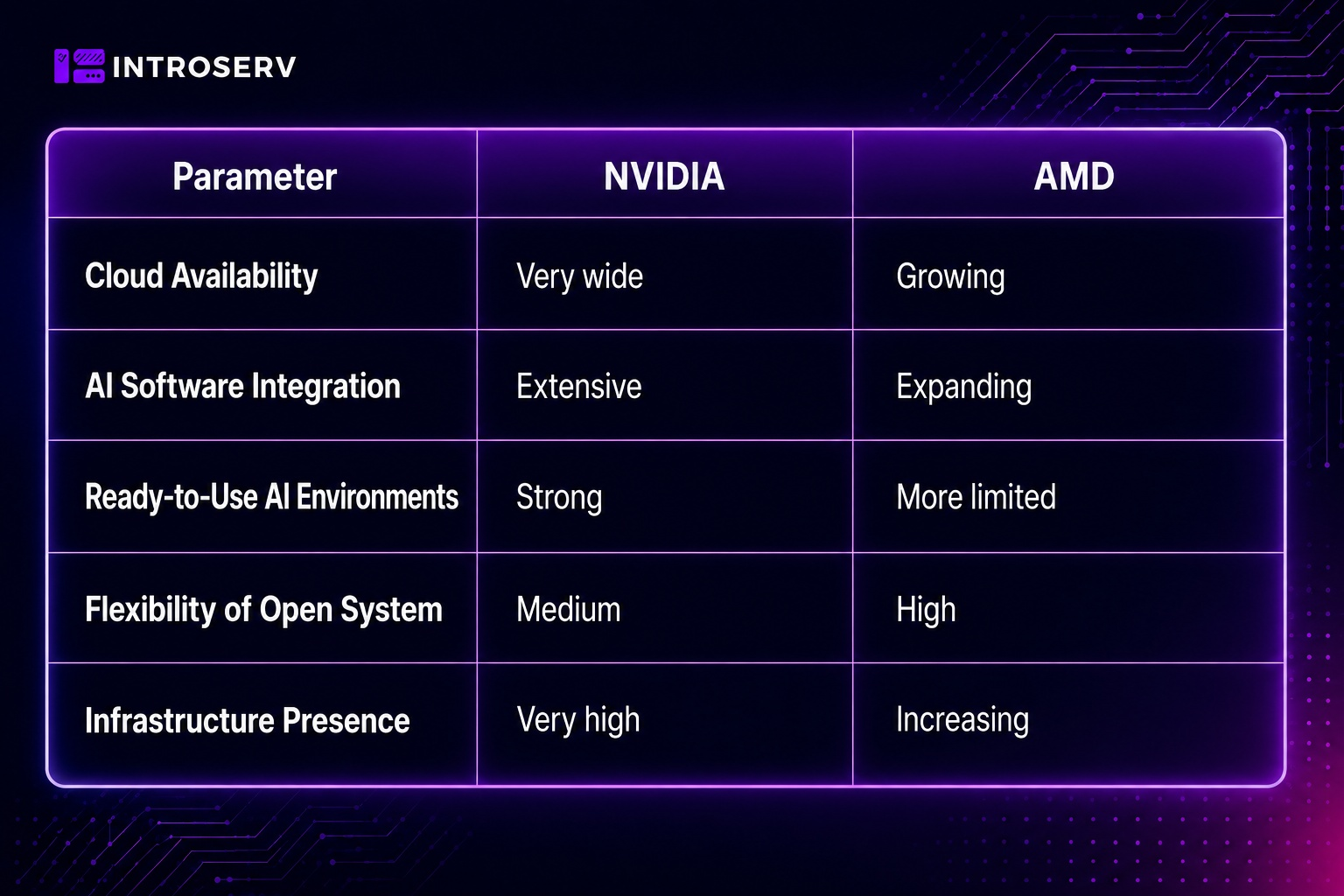

Integration with Cloud and Server Infrastructure

NVIDIA has a strong presence among cloud and infrastructure providers. Its ecosystem includes development tools, containers, preconfigured frameworks, and AI software that simplify GPU deployment and management.

AMD is also actively expanding its presence in cloud environments and data centers, primarily through its Instinct product line and the ROCm platform. Its open-source approach makes AMD increasingly attractive to companies looking for an alternative to CUDA-based infrastructure.

Technical advice: A server that appears cheaper upfront can end up costing more if you later discover that the model does not fit into the memory of a single GPU and requires two, or that a critical library is only available for CUDA. The opposite is also true: paying a premium for a flagship GPU makes little sense if the workload is limited by memory bandwidth rather than raw compute performance.
For this reason, the decision should be based not on the brand, but on four factors: the specific GPU model, the versions of the framework and libraries, the supported operating system, and the deployment method. If even one of these factors is not verified in advance, the savings on hardware can quickly be offset by additional engineering hours.

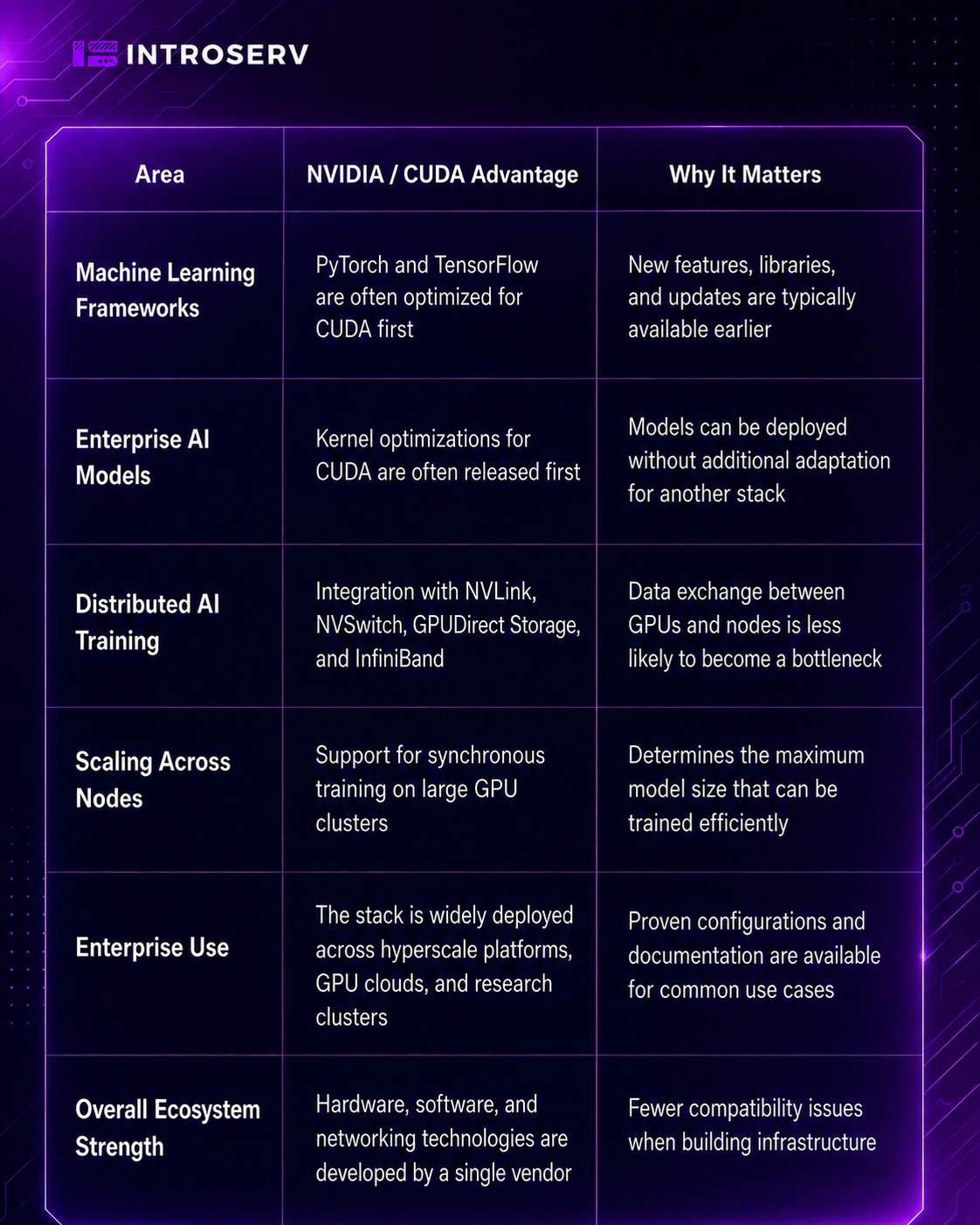

NVIDIA Strengths: Mature Ecosystem and Broad AI Support

One of NVIDIA’s main advantages is its mature software ecosystem. CUDA is widely used across the AI industry, so many libraries, optimization tools, training resources, containers, and production systems are designed with NVIDIA GPUs in mind from the start. As a result, development teams can usually find proven installation guides, detailed documentation, and ready-made solutions for common deployment issues.

The platform supports major frameworks, including PyTorch, TensorFlow, and JAX. It also integrates with pretrained model libraries, Kubernetes tools, monitoring systems, and enterprise AI platforms. NVIDIA’s deep learning software stack combines CUDA libraries, cuDNN, and other tools that help applications use GPU resources efficiently.

For inference, NVIDIA offers TensorRT, which helps optimize supported models to reduce latency and increase throughput. Its compiler and runtime tools simplify the transition from a trained model to a production service. More information is available in the TensorRT documentation.

Mature drivers and libraries are also important because setup time directly affects project costs. Engineering teams can spend days resolving issues related to incompatible drivers, framework versions, kernels, or dependencies. NVIDIA’s broader support ecosystem helps reduce these challenges, especially when using prebuilt Docker containers and validated cloud images.

In multi-GPU systems, another advantage can be NVLink, a high-speed interconnect technology between GPUs. In supported configurations, it enables faster data exchange than standard PCIe, which is especially important when multiple GPUs work together on the same model. However, the actual benefit of NVLink depends on the GPU generation, server architecture, software environment, and workload characteristics.

In practice, NVIDIA’s advantage is often measured not only by raw GPU performance, but also by the engineering time saved during deployment, optimization, and ongoing operation.

AMD Strengths: Memory Capacity and Instinct Performance

AMD Instinct GPUs can provide large amounts of GPU memory and strong compute performance for supported AI workloads. This is particularly useful when a model, batch, or dataset does not fit into a GPU with less VRAM. Higher memory capacity can also reduce the need for aggressive quantization or complex model partitioning across multiple GPUs.

AMD’s software ecosystem is built around ROCm, while HIP provides a path for adapting many CUDA-oriented applications to AMD hardware. In supported systems, Infinity Fabric can also be used for high-speed data exchange between accelerators.

At the same time, compatibility requires more careful validation. Support can vary depending on the specific GPU model, ROCm version, operating system, Linux distribution, drivers, libraries, containers, and AI framework.

What to Check Before Choosing an AMD GPU Server

• the specific GPU model and memory capacity;
• ROCm and HIP versions;
• compatibility with PyTorch, TensorFlow, or JAX;
• required libraries and operators;
• the operating system, server platform, and deployment environment.

Some projects originally developed for CUDA may require additional adaptation, library replacement, or testing before they can run efficiently on ROCm. This does not make AMD a weaker choice. It means AMD is especially well suited to projects where the software stack can be validated in advance and where the advantages in memory capacity, performance, or cost justify the additional engineering effort.

The workload type also matters significantly. One GPU may perform better for training transformer models, while another may be more effective for memory-intensive inference or specific computational workloads. For this reason, the final decision should not be based solely on general benchmark results. It is better to test your own models, batch sizes, precision settings, and scaling scenarios.

CUDA vs. ROCm: Comparing NVIDIA and AMD Software Ecosystems

When comparing CUDA and ROCm, it is important to consider more than just GPU performance. In many real-world scenarios, the software ecosystem plays a decisive role, especially for companies deploying AI solutions in production environments, where compatibility, stability, tool availability, and ease of deployment are critical.

CUDA: NVIDIA’s Platform and the CUDA-X Libraries

CUDA (Compute Unified Device Architecture) is NVIDIA’s computing platform for artificial intelligence and HPC workloads. It is tightly integrated with NVIDIA GPUs and gives developers access to computing resources through APIs, compilers, runtimes, and libraries.

These libraries are grouped within the CUDA-X ecosystem, with each component addressing a specific stage of the workflow. cuDNN optimizes neural network operations and Tensor Core usage, TensorRT accelerates inference and reduces latency when deploying trained models, NCCL handles data exchange and synchronization between GPUs in multi-GPU systems, and RAPIDS accelerates data science and analytics workloads.

Another important feature is CUDA Graphs, which captures a sequence of operations and launches it as a single workflow, reducing the overhead associated with launching individual kernels.

At the platform level, the stack is complemented by NVLink and NVSwitch for high-speed GPU-to-GPU communication, GPUDirect Storage for direct data exchange with storage systems, and InfiniBand for communication between nodes.

ROCm: AMD’s Open-Source Platform and HIP

ROCm (Radeon Open Compute Platform) is AMD’s open-source software platform for GPU computing and the main alternative to CUDA. It is designed for AI, HPC, and compute-intensive workloads in Linux environments and includes runtimes, programming tools, optimized libraries, and support for machine learning frameworks.

ROCm supports PyTorch, TensorFlow, ONNX Runtime, OpenCL, and MPI-based HPC workloads. A key component of the ecosystem is HIP: its programming model is syntactically similar to CUDA, while the HIPIFY tool helps port existing CUDA applications without requiring a complete rewrite of the code.

The library layer follows a similar functional mapping: MIOpen addresses many of the same deep learning tasks as cuDNN, RCCL provides functionality comparable to NCCL, and rocBLAS handles linear algebra operations. Compatibility with third-party libraries, however, should still be verified separately for the specific ROCm version being used.

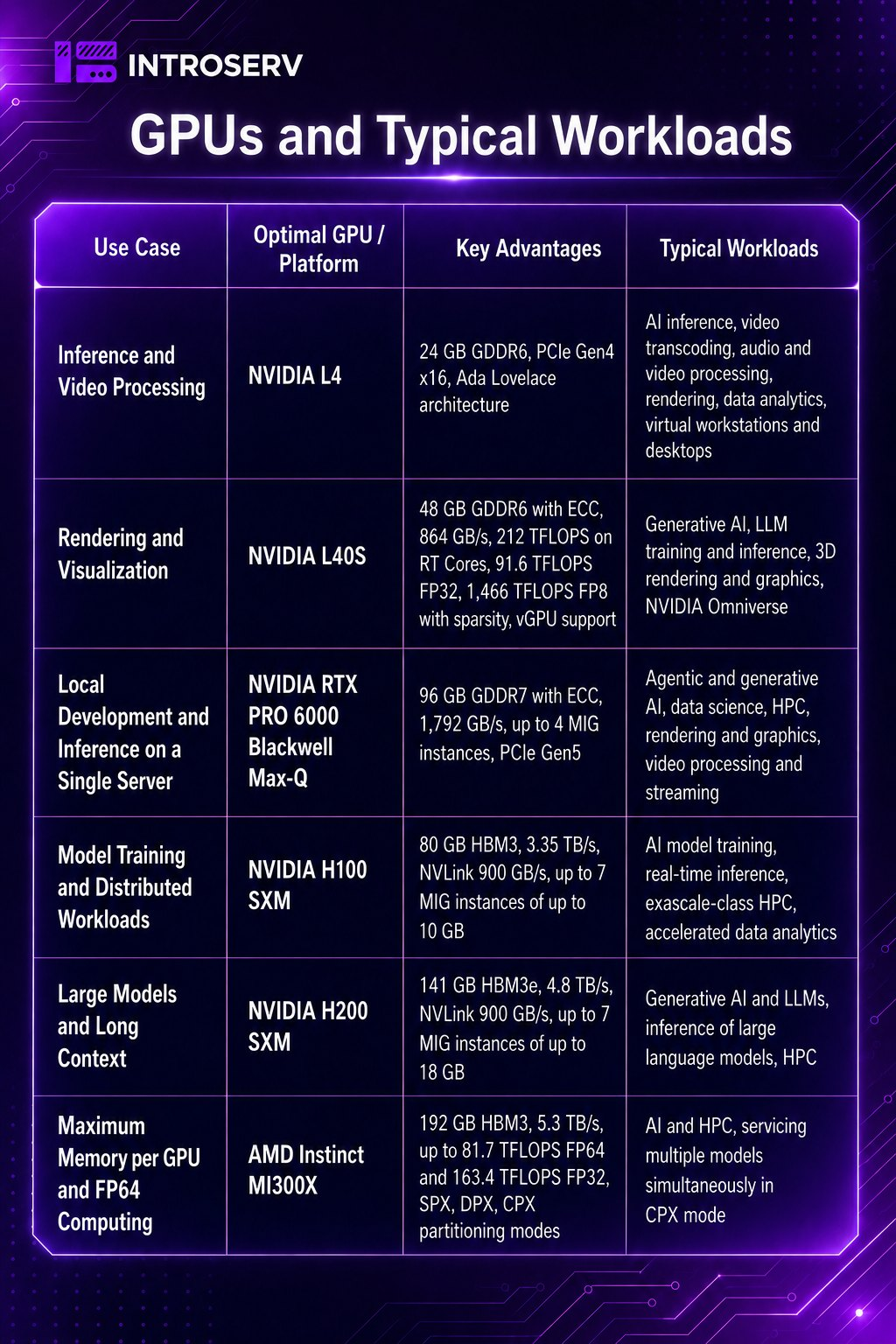

GPUs and Typical Workloads: Which GPU Fits Your Use Case

NVIDIA or AMD: Which GPU Server Fits Your Workload?

There is no universal winner. The best choice depends on the workload, software stack, and infrastructure requirements.

NVIDIA is often the better fit when the priorities are:

• CUDA compatibility;
• a mature AI ecosystem;
• easier deployment;
• a wide range of ready-to-use tools and libraries;
• strong optimization for deep learning.

AMD may be a more attractive option when the priorities are:

• high GPU memory bandwidth;
• large VRAM capacity;
• an open-source approach;
• strong price-to-performance value.

Ultimately, the decision should not be based on the brand name alone. It should take into account the specific GPU model, software stack, workload type, memory requirements, deployment environment, and total infrastructure cost.
