How to log and monitor traffic consumption with vnStat

vnStat is a lightweight console tool that keeps a history of network traffic on Linux. A background service, vnstatd, reads the interface counters from the kernel and saves them to a small database. You can then view traffic by hours, days, months and years, or watch the current transfer rate in real time. vnStat does not capture packets, so its overhead is very low. It shows how much traffic passed through each interface, but not which IP addresses, ports or connections created it.

This guide shows how to install vnStat from the repository or from source code, and how to view traffic statistics. vnStat is useful on any server where traffic is limited or billed, for example on an INTROSERV Linux VPS or dedicated server.

Install vnStat from the repository

Connect to your server over SSH. For details, see Connecting via SSH.

Ubuntu and Debian

vnStat is available in the standard repositories. Install it:

sudo apt update
sudo apt install -y vnstat

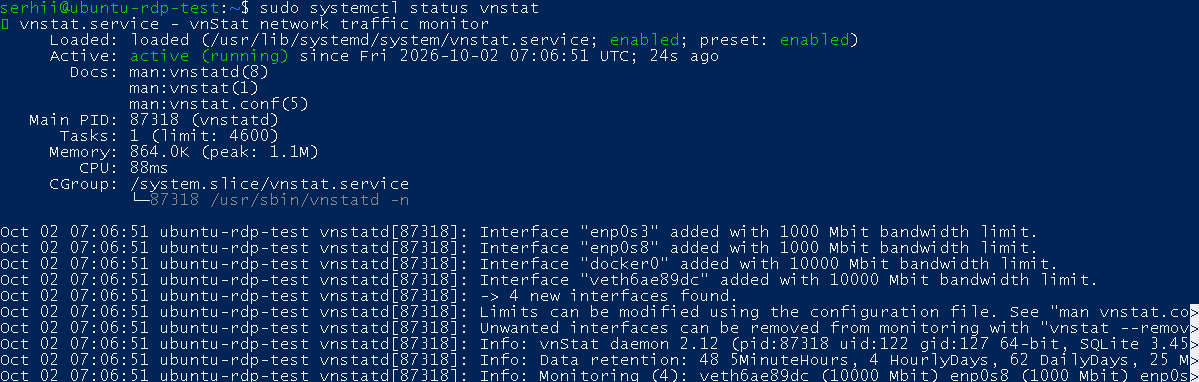

The installation starts the vnstat service and enables it at boot. Check that it is running:

sudo systemctl status vnstat

The output must show active (running). If the service is not running, enable and start it with sudo systemctl enable --now vnstat.

AlmaLinux and Rocky Linux

vnStat is available in the EPEL repository. Enable EPEL and install vnStat:

sudo dnf install -y epel-release
sudo dnf install -y vnstat

Enable and start the service:

sudo systemctl enable vnstat && sudo systemctl start vnstat

Check that it is running:

sudo systemctl status vnstat

Install vnStat from source code

Build vnStat from source if the package is not available for your distribution or if you need the latest version.

Install the build dependencies. On Ubuntu and Debian:

sudo apt update && sudo apt install -y build-essential libsqlite3-dev wget

On AlmaLinux and Rocky Linux:

sudo dnf group install -y "Development Tools"
sudo dnf install -y sqlite-devel wget

Download and unpack the latest release:

wget https://humdi.net/vnstat/vnstat-latest.tar.gz
tar -xf vnstat-latest.tar.gz
cd vnstat-*/

The archive unpacks into a directory with the version number in its name, for example vnstat-2.13. The wildcard vnstat-*/ lets you enter it without typing the version number.

Build and install vnStat:

./configure --prefix=/usr --sysconfdir=/etc && make && sudo make install

The --prefix=/usr option installs the programs to /usr/bin and /usr/sbin, and --sysconfdir=/etc places the configuration file in /etc/vnstat.conf.

On AlmaLinux and Rocky Linux with SELinux enabled, if vnStat was previously installed from the repository, restore the SELinux labels of the database directory first. Otherwise the service fails to start with a Permission denied error:

sudo restorecon -Rv /var/lib/vnstat

Install the systemd service, then enable and start it:

sudo cp -v examples/systemd/vnstat.service /etc/systemd/system/
sudo systemctl daemon-reload
sudo systemctl enable --now vnstat

Check the version and the service status:

vnstat --version
sudo systemctl status vnstat

Find the network interface

By default, vnStat adds all network interfaces of the server to its database, except the loopback interface. To see the interfaces currently stored in the database, run:

vnstat --dbiflist

You can also list the interfaces with ip a. The examples below use the interface ens3. Replace it with the name of your interface, for example eth0 or enp1s0.

View traffic statistics

Run vnstat without options to see a summary for all interfaces, including traffic for the current day and month and an estimate for the end of each period.

vnstat

In all reports, rx is incoming traffic, tx is outgoing traffic, and total is their sum.

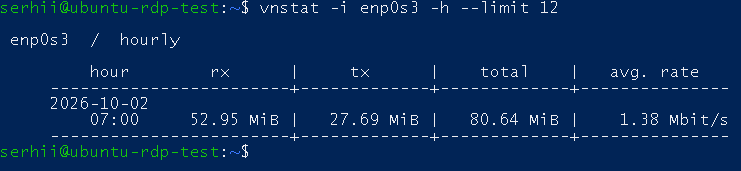

Traffic by hour

To view the 12 latest hourly entries, run:

vnstat -i ens3 -h --limit 12

Traffic by day

To view the 2 latest daily entries, run:

vnstat -i ens3 -d --limit 2

Without --limit, the number of entries shown is set by the ListDays parameter in /etc/vnstat.conf, 30 by default. It limits only the output, not the data stored in the database.

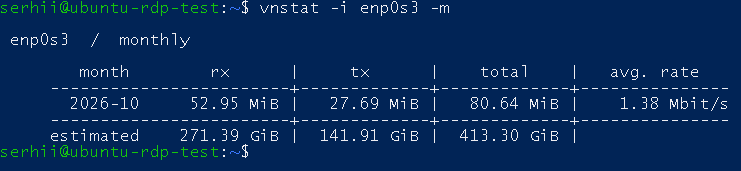

Traffic by month

vnstat -i ens3 -m

Traffic by year

vnstat -i ens3 -y

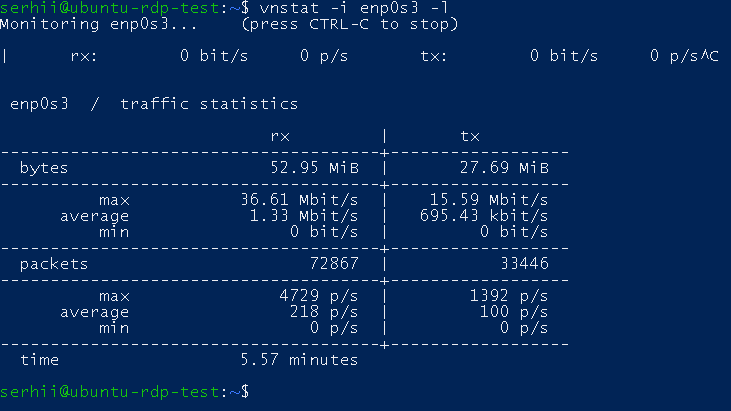

Traffic in real time

To watch the current transfer rate, run:

vnstat -i ens3 -l

The rate updates until you press Ctrl+C. If the command ran for more than 10 seconds, vnStat then shows a summary for this time.

Traffic for a set number of seconds

To measure the average traffic rate over a period of time, set the period in seconds. For example, 20 seconds:

vnstat -i ens3 -tr 20

Without a number, the measurement takes 5 seconds. The result is shown when the time is up.

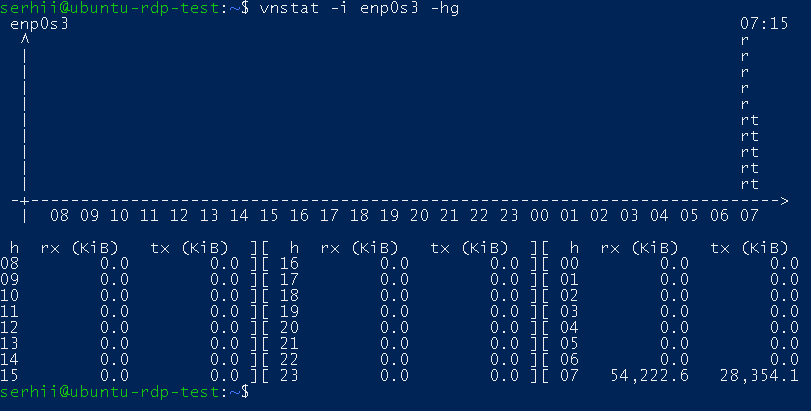

Graph for the last 24 hours

To show the traffic for the last 24 hours as a text graph, run:

vnstat -i ens3 -hg

Set the default interface

If the server has several interfaces and you usually check one of them, set it as the default in the configuration file /etc/vnstat.conf. Open the file:

sudo nano /etc/vnstat.conf

On AlmaLinux and Rocky Linux, nano is not installed by default. Install it with sudo dnf install -y nano or use vi.

Find the Interface line, remove the semicolon at the beginning and enter the name of your interface:

Interface "ens3"

Save the file. Now vnstat shows this interface when you run it without the -i option, for example vnstat -d. The vnstat service continues to monitor all interfaces.

For the full list of options, run vnstat --longhelp or see man vnstat.
